DNT SURGICAL MICROSCOPE |
PRIMA DNT Applications: |
• ENDODONTICS • RECONSTRUCTIVE SURGERY
• PERIODONTICS • GENERAL PRACTICE |
|
Making Better Dental Care Easy and Affordable
The PRIMA platform reflects a philosophy of high-performance while delivering modularity to today's healthcare environments that need capital equipment to maximize value. With an intelligent LED illumination system, an APOchromatic Gallilean optical system, and fluid articulation for greater flexibility, PRIMA is a smart choice for today's Dental general and specialty practioners.
|
PRIMA DNT Advantages: |
|
A super bright 50W LED produces a powerful yet cool field of illumination on any region of interest. With an estimated 60,000 hours of bulb service life, the hassle of bulb change is now a thing of the past. With electronics built into the arm, the Prima is a compact solution. |
|
A responsive 5-step APOchromatic Gallilean magnichanger produces a sharp image at every step. 3-color correction promises doctors the highest in image fidelity and resolution with virtually limitless range. Fine focussing is made possible through a range of long working distance objectives, or CMO's |
|
Realizing a microscope should adhere to any desired viewing angle, smooth and muli-axial articulation are a standard with PRIMA. An intelligent "LED Auto position makes interacting with patients easier. |
|
|
SPECIFICATIONS OF THE DNT MICROSCOPE |
|
Stand |
Heavy weight H-shape base on lockable castor wheels.
Swivel arm mounted on pillar. |
Binocular Tube |
Ergonomic tilting head 0-210° , f = 170mm focal length |
APOchromatic Magnichanger |
0.4x,0.63x,1.0x,1.6x & 2.5x |
Eyepiece |
WF 10x/18mm with eyeguards |
Common Main
Objective (CMO) |
f = 250mm with manual fine focus |
Light Source |
50W LED, upto 60,000 hours of LED lamp life |
Built-in-Filters |
Green & Yellow |
Vertical Movement |
600mm |
Points of Articulation |
Swivel, Suspension (XYZ), Coupler, Carrier, Microscope.
All points of articulation are lockable. |
Microscope Mount |
120° coupler and Dental carrier |
|
|
Package Contents
- Tools for Securing Base and Pillar
- Sterilizable Knob Covers
- Nylon Dust Cover
Accessories (Optional)
- f=175/200/250/300/400mm CMO's
- 12.5x and 16x Eyepieces
- Inclined Viewing Body
- Digital & Analog Cameras
- Assistant Viewing Bridge
- Double Beam Splitter and Adapters
- Wall, Ceiling, and Table Mounts
Warranty Information
- 2 Year Parts
- 1 Year Electrica
|
|
|
|
|
Other documents |
|
|
|
|
|
|
|
|
|

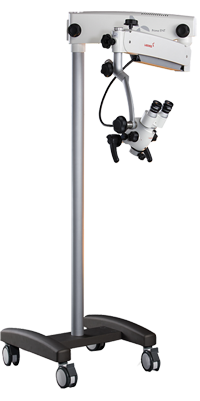

ENT SURGICAL MICROSCOPE |
Enhanced Maneuverability for Ear/Nose/Throat Work
The PRIMA platform reflects a philosophy of high-performance while delivering modularity to today's healthcare environments that need capital equipment to maximize value. With an intelligent LED illumination system, an APOchromatic Gallilean optical system, and fluid articulation for greater flexibility, PRIMA is a smart choice for today's ENT specialists.
PRIMA ENT Applications:
- Tonsillectomy
- Septoplasty
- General Practice
|
PRIMA ENT Advantages: |
|
A super bright 50W LED produces a powerful yet cool field of illumination on any region of interest. With an estimated 60,000 hours of bulb service life, the hassle of bulb change is now a thing of the past. With electronics built into the arm, the Prima is a compact solution. |
|
A responsive 5-step APOchromatic Gallilean magnichanger produces a sharp image at every step. 3-color correction promises doctors the highest in image fidelity and resolution with virtually limitless range. Fine focussing is made possible through a range of long working distance objectives, or CMO's |
|
Realizing a microscope should adhere to any desired viewing angle, smooth and muli-axial articulation are a standard with PRIMA. An intelligent "LED Auto-off" position makes interacting with patients easier. |
|
|
SPECIFICATIONS OF THE DNT MICROSCOPE |
|
Stand |
Heavy weight H-shape base on lockable castor wheels. Swivel arm mounted on pillar. |
Binocular Tube |
Straight, f = 170mm focal length |
APOchromatic Magnichanger |
0.4x,0.63x,1.0x,1.6x & 2.5x |
Eyepiece |
WF 10x/16mm with eye guards |
Common Main
Objective (CMO) |
f = 250mm with manual fine focus |
Light Source |
50W LED, upto 60,000 hours of LED lamp life |
Built-in-Filters |
Green & Yellow |
Vertical Movement |
600mm |
Points of Articulation |
Swivel, Suspension (XYZ), Coupler, Carrier, Microscope. All points of articulation are lockable. |
Microscope Mount |
120° coupler and ENT carrier |
|
|
Package Contents
- Tools for Securing Base and Pillar
- Sterilizable Knob Covers
- Nylon Dust Cover
|
Accessories (Optional)
- f=175/200/250/300/400mm CMO's
- 12.5x and 16x Eyepieces
- Inclined and Ergonomic Viewing Bodies
- Digital & Analog Cameras
- Assistant Viewing Bridge
- Double Beam Splitter and Adapters
- Wall, Ceiling, and Table Mounts
Warranty Information
- 2 Year Parts
- 1 Year Electrical
|
|
|
|
|
Other documents
|
|
|
|
|
|
|
GN SURGICAL MICROSCOPE |
Streamlining Early Detection and Documentation
for Today's OBGYN's
|
The GN platform reflects a philosophy of high-performance while delivering modularity to today's healthcare environments that need capital equipment to maximize value. With an intelligent LED illumination system, an APOchromatic Gallilean optical system, and fluid articulation for greater flexibility, PRIMA is a smart choice for today's OBGYN's.
GN Applications:
- Gynecology
- Cervical Screening
- Progressive Diagnostics
- Ablation Procedures
- General Practice
GN Advantages:
|
A super bright 50W LED produces a powerful yet cool field of illumination on any region of interest. With an estimated 60,000 hours of bulb service life, the hassle of bulb change is now a thing of the past. With electronics built into the arm, the Prima is a compact solution. |
|
A responsive 5-step APOchromatic Gallilean magnichanger produces a sharp image at every step. 3-color correction promises doctors the highest in image fidelity and resolution with virtually limitless range. Fine focussing is made possible through a range of long working distance objectives, or CMO's |
|
Realizing a microscope should adhere to any desired viewing angle, smooth and muli-axial articulation are a standard with PRIMA. An intelligent "LED Auto-off" position makes interacting with patients easier. |
|
|
SPECIFICATIONS OF CAMERA |
|
Stand |
Heavy weight H-shape base on lockable castor wheels. Swivel arm mounted on pillar. |
Binocular Tube |
Straight, f = 170mm focal length |
APOchromatic Magnichanger |
0.4x,0.63x,1.0x,1.6x & 2.5x |
Eyepiece |
WF 10x/16mm with eye guards |
Common Main
Objective (CMO) |
f = 300mm with manual fine focus |
Light Source |
50W LED, upto 60,000 hours of LED lamp life |
Built-in-Filters |
Green |
Vertical Movement |
600mm |
Points of Articulation |
Swivel, Suspension (XYZ), Coupler, Carrier, Microscope. All points of articulation are lockable. |
Microscope Mount |
120° coupler and OB/GYN carrier |
|
|
Package Contents
- Tools for Securing Base and Pillar
- Sterilizable Knob Covers
- Nylon Dust Cover
Accessories (Optional)
- f=175/200/250/300/400mm CMO's
- 12.5x and 16x Eyepieces
- Inclined Viewing Body
- Digital & Analog Cameras
- Assistant Viewing Bridge
- Double Beam Splitter and Adapters
- Wall, Ceiling, and Table Mounts
Warranty Information
- 2 Year Parts
- 1 Year Electrical
|
|
|
|
|
More information
|
|
|
|
|
|
|
OPH SURGICAL MICROSCOPE |
Making Better Eye Care Possible
The PRIMA platform reflects a philosophy of high-performance while delivering modularity to today's healthcare environments that need capital equipment to maximize value. With a bright illumination system, an APOchromatic Gallilean optical system, and fluid articulation for greater flexibility, PRIMA is a smart choice for today's Ophthalmic specialists.
Application for Ophtalmic specialists
- Cataract Removal
- Micro-surgery
- Corneal Ablation Procedures
- General Practice
PRIMA OPH Advantages:
|
A super bright 50V/150W Halogen illumination system produces a powerful field of illumination to light up any region of interest. Procedures need not halt due to bulb outage, thanks to a QuickEngage back-up bulb. |
|
A responsive 5-step APOchromatic Gallilean magnichanger produces a sharp image at every step. 3-color correction promises doctors the highest in image fidelity and resolution with virtually limitless range. Fine focussing is made possible through a range of long working distance objectives, or CMO's |
|
Realizing a micrscope should adhere to any desired viewing angle, smooth and multi-axial articulation are a standard with PRIMA. An intelligent AutoOff feature makes interacting with patients easier. |
|
|
|
SPECIFICATIONS OF CAMERA |
|
Stand |
Heavy weight H-shape base on lockable castor wheels. Swivel arm mounted on pillar. |
Binocular Tube |
Inclined, f = 170mm focal length |
APOchromatic Magnichanger |
0.4x,0.63x,1.0x,1.6x & 2.5x |
Eyepiece |
WF 10x/16mm with eye guards |
Common Main
Objective (CMO) |
f = 200mm with motorized fine focus |
Light Source |
15V150W Halogen with dual bulb change mechanism |
Built-in-Filters |
Green & Blue |
Vertical Movement |
600mm |
Points of Articulation |
Swivel, Suspension (XYZ), Microscope.
All points of articulation are lockable. |
Microscope Mount |
Motorized carrier |
|
|
Package Contents
- Tools for Securing Base and Pillar
- Sterilizable Knob Covers
- Nylon Dust Cover
Accessories (Optional)
- f=175/200mm CMO's
- 12.5x and 16x Eyepieces
- Inclined Viewing Body
- Digital & Analog Cameras
- Assistant Viewing Bridge
- Double Beam Splitter and Adapters
- Wall, Ceiling, and Table Mounts
Warranty Information
- 2 Year Parts
- 1 Year Electrical
|
|
|
|
|
Accessories
|
|
|
|
|
|
|
|
SURGICAL CAMERA |
A Versatile Imaging Solution for Medical Practices
The iVu S5 is a medical grade digital camera that can provide super resolution video (1080p) and digital signals out, simultaneously. With an on-board SD Card slot, doctors need not be tethered to their computers to capture images for patient documentation. Consistent with Labomed's modular design philosophy, this camera will integrate seamlessly with your surgical microscope.
|
|
5 Megapixel HD (1080p) resolution with 30 frames per second (fps), high-fidelity in image rendering and sharp image contrast. Digital and SD Card capturing are a standard with the iVu S5. Optional foot pedal make hands free capture easy. This system does it all! |
|
PixelPro Image Capture Software makes still and video capturing simple. A modern and easy to navigate user interface allows users of all computer skills to quickly identify critical control functions, and to archive, measure and annotate images. |
|
|
SPECIFICATIONS OF CAMERA |
|
Sensor |
1/2.5” 5.0 Megapixel Color CMOS |
Active area |
5.70mm x 4.28mm |
Sensor resolution |
2592 x 1944 pixels |
Pixel Size |
2.2µm x 2.2µm |
A/D conversion |
12 Bit RGB |
Pixel clock |
48 MHz |
Dynamic range |
68 dB (measured at 10 ms exposure) |
Max. exposure |
3 seconds (Automatic Exp, WB, BL) |
Frame rate
(image size) |
30 fps (1080p) |
Image resolution
(Standard Binning) |
2592 x 1944 - 1280 x 720 |
Interface |
USB 2.0, HDMI, Secure Digital (SD) Card |
Optical connection |
C- Mount |
Voltage supply |
5V/ 2 Amp (via USB 2.0 connector,
optional external power adapter) |
Power consumption |
approx. 1.8W |
Power indication |
Green LED indicating power on and ready for capture |
SD Card Slot |
Accepts SD and SDHC (High Capacity) cards |
Ambient conditions |
Temperature: -30˚C… +70˚C
Humidity: 5%... 80%, not condensing |
Dimensions (LxWxH) |
145mm x 93mm x 123mm |
Weight |
600g |
Capture software |
PixelPro |
Computer Requirments |
PC: Microsoft Windows® XP/ Vista/ 7 OS, 3 Ghz CPU, 2GB RAM, USB 2.0 |
|
|
Package Contents
- PixelPro Image Capture Software
- USB 2.0 Cable (2ft)
- HDMI Cable (6ft)
Warranty Information
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
